Durability for Heavy Loads

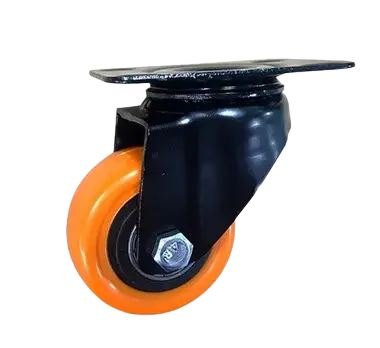

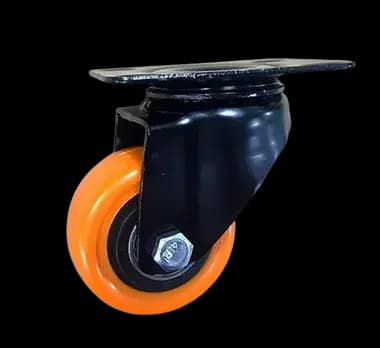

PREMIUM POLYURETHANE CASTOR WHEELS

Polyurethane castor wheels are made from robust and long lasting materials and are engineered to handle large loads easily. These wheels are ideal for usage in commercial and industrial environments where wheels usually get exposed to severe conditions. You might not know that many industries use PU castor wheels as an alternative to cast iron and steel wheels.

That is because PU castors have the ability to considerably reduce noise levels and protect workers’ hearing. Moreover, polyurethane castor wheels offer much more load capability compared to rubber castor wheels.

If you are looking for the best PU castor wheel manufacturer in India, do not look anywhere else and choose Muvall for your castor solutions needs! We offer polyurethane wheels in various diameters and tread patterns. Our PU wheels are not only noiseless, but they also provide riding comfort on uneven surfaces.

Moreover, heavy duty polyurethane castor wheels by Muvall can withstand heavy loads, resist water and offer effortless movement. Overall, you can use our wheels in a wide range of applications as they will surely deliver durability, high performance and improved mobility. All these factors make our PU wheels an excellent choice for diverse industries and settings. So, why not go for them and see it for yourself?

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
PSTP S 65 32 OPUB69mm65mm32mm92mm93x62mmNA73x45mm8.5x12mm80Kgs
PSTP S 75 32 OPUB75mm75mm32mm105mm93x62mmNA73x45mm8.5x12mm100Kgs
PSTP S 100 32 OPUB87mm100mm32mm130mm93x62mmNA73x45mm8.5x12mm130Kgs
PSTP B 65 32 OPUB115mm65mm32mm92mm93x62mmNA73x45mm8.5x12mm80Kgs
PSTP B 75 32 OPUB115mm75mm32mm105mm93x62mmNA73x45mm8.5x12mm100Kgs
PSTP B 100 32 OPUB115mm100mm32mm130mm93x62mmNA73x45mm8.5x12mm130Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
PSTP F 100 40 OPUBNA100mm40mm135mm100x82mmNA75x55mm15x11mm220Kgs
PSTP F 150 40 OPUBNA150mm40mm190mm112x100mmNA85x72mm15x11mm250Kgs
PSTP S 100 40 OPUB88mm100mm40mm135mm100x82mmNA75x55mm15x11mm220Kgs
PSTP S 150 40 OPUB118mm150mm40mm190mm112x100mmNA85x72mm15x11mm250Kgs
PSTP B 100 40 OPUB114mm100mm40mm135mm100x82mmNA75x55mm15x11mm220Kgs
PSTP B 150 40 OPUB130mm150mm40mm190mm112x100mmNA85x72mm15x11mm250Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
PSTS F 75 32 RPUBNA75mm32mm103mm95x68mmNA73x45mm12×8.5mm100Kgs
PSTS F 100 32 RPUBNA100mm32mm130mm95x68mmNA73x45mm12×8.5mm130Kgs
PSTS F 125 32 RPUBNA125mm32mm158mm95x68mmNA73x45mm12×8.5mm150Kgs
PSTS S 75 32 RPUB75mm75mm32mm103mm95x68mmNA73x45mm12×8.5mm100Kgs
PSTS S 100 32 RPUB87mm100mm32mm130mm95x68mmNA73x45mm12×8.5mm130Kgs
PSTS S 125 32 RPUB89mm125mm32mm158mm95x68mmNA73x45mm12×8.5mm150Kgs
PSTS B 75 32 RPUB115mm75mm32mm103mm95x68mmNA73x45mm12×8.5mm100Kgs
PSTS B 100 32 RPUB115mm100mm32mm130mm95x68mmNA73x45mm12×8.5mm130Kgs
PSTS B 125 32 RPUB112mm125mm32mm158mm95x68mmNA73x45mm12×8.5mm150Kgs
PSTS BT 75 32 RPUB75mm75mm32mm103mmNA30mmNANA100Kgs
PSTS BT 100 32 RPUB87mm100mm32mm130mmNA30mmNANA130Kgs
PSTS BTBK 75 32 RPUB115mm75mm32mm103mmNA30mmNANA100Kgs
PSTS BTBK 100 32 RPUB115mm100mm32mm130mmNA30mmNANA130Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
MFTP F 100 50 PUBNA100mm50mm142mm116x100mmNA85x70mm20x13mm230Kgs
MFTP F 150 50 PUBNA150mm50mm192mm116x100mmNA85x70mm20x13mm280Kgs
MFTP F 200 50 PUBNA200mm50mm242mm116x100mmNA85x70mm20x13mm300Kgs
MFTP S 100 50 PUB74mm100mm50mm142mm116x100mmNA85x70mm20x13mm230Kgs
MFTP S 150 50 PUB109mm150mm50mm192mm116x100mmNA85x70mm20x13mm280Kgs
MFTP S 200 50 PUB153mm200mm50mm242mm116x100mmNA85x70mm20x13mm300Kgs
MFTP B 100 50 PUB145mm100mm50mm142mm116x100mmNA85x70mm20x13mm230Kgs
MFTP B 150 50 PUB145mm150mm50mm192mm116x100mmNA85x70mm20x13mm280Kgs
MFTP B 200 50 PUB158mm200mm50mm242mm116x100mmNA85x70mm20x13mm300Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
HDF F 100 50 PUBNA100mm50mm158mm150x112mmNA120x60mm13mm230Kgs
HDF F 150 50 PUBNA150mm50mm205mm150x112mmNA120x60mm13mm280Kgs
HDF F 200 50 PUBNA200mm50mm254mm150x112mmNA120x60mm13mm300Kgs
HDF S 100 50 PUB91mm100mm50mm158mm15x110mmNA120x60mm26x13mm230Kgs
HDF S 150 50 PUB130mm150mm50mm205mm15x110mmNA120x60mm26x13mm280Kgs
HDF S 200 50 PUB151mm200mm50mm254mm15x110mmNA120x60mm26x13mm300Kgs
HDF B 100 50 PUB155mm100mm50mm158mm15x110mmNA120x60mm26x13mm230Kgs
HDF B 150 50 PUB163mm150mm50mm205mm15x110mmNA120x60mm26x13mm280Kgs
HDF B 200 50 PUB187mm200mm50mm254mm15x110mmNA120x60mm26x13mm300Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
PSTIL F 100 38 PUBNA100mm38mm140mm95x95mmNA70x70mm16x11mm120Kgs
PSTIL F 150 38 PUBNA150mm38mm194mm115x102mmNA90x64mm16x11mm140Kgs
PSTIL F 100 50 PUBNA100mm50mm140mm95x95mmNA70x70mm16x11mm130Kgs
PSTIL F 150 50 PUBNA150mm50mm194mm115x102mmNA90x64mm16x11mm150Kgs
PSTIL F 200 50 PUBNA200mm50mm249mm102x115mmNA90x64mm16x11mm180Kgs
PSTIL S 100 38 PUB116mm100mm38mm140mm95x95mmNA70x70mm16x11mm120Kgs
PSTIL S 150 38 PUB116mm150mm38mm194mm120x95mmNA90x64mm16x11mm140Kgs
PSTIL S 100 50 PUB116mm100mm50mm140mm95x95mmNA70x70mm16x11mm130Kgs
PSTIL S 150 50 PUB116mm150mm50mm194mm120x95mmNA90x64mm16x11mm150Kgs
PSTIL S 200 50 PUB144mm200mm50mm249mm95x120mmNA90x64mm16x11mm180Kgs
PSTIL B 100 38 PUB136mm100mm38mm140mm95x95mmNA70x70mm16x11mm120Kgs
PSTIL B 150 38 PUB136mm150mm38mm194mm120x95mmNA90x64mm16x11mm140Kgs
PSTIL B 100 50 PUB136mm100mm50mm140mm95x95mmNA70x70mm16x11mm130Kgs
PSTIL B 150 50 PUB147mm150mm50mm194mm120x95mmNA90x64mm16x11mm150Kgs
PSTIL B 200 50 PUB147mm200mm50mm249mm95x120mmNA90x64mm16x11mm180Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
PST F 100 50 PUBNA100mm50mm135mm135x114mmNA105x80mm13.5x11mm230Kgs
PST F 150 50 PUBNA150mm50mm185mm135x114mmNA105x80mm13.5x11mm280Kgs
PST F 200 50 PUBNA200mm50mm235mm135x114mmNA105x80mm13.5x11mm300Kgs
PST S 100 50 PUB93mm100mm50mm135mm135x110mmNA105x80mm13.5x11mm230Kgs
PST S 150 50 PUB117mm150mm50mm185mm135x110mmNA105x80mm13.5x11mm280Kgs
PST S 200 50 PUB131mm200mm50mm235mm135x110mmNA105x80mm13.5x11mm300Kgs
PST B 100 50 PUB100mm50mm135mm135x110mmNA105x80mm13.5x11mm230Kgs
PST B 150 50 PUB160mm150mm50mm185mm135x110mmNA105x80mm13.5x11mm280Kgs
PST B 200 50 PUB160mm200mm50mm235mm135x110mmNA105x80mm13.5x11mm300Kgs

Product codeSwivel RadiusWheel DiameterWheel WidthTotal HeightPlate SizeStem HeightHole PitchHole SizeLoad Capacity
SMFT F 160 50 PUBNA160mm50mm207mm115x110mmNA92x76mm20×11.5mm400Kgs
SMFT S 160 50 PUB160mm50mm207mm115x110mmNA92x76mm20×11.5mm400Kgs
PST F 200 50 PUB160mm50mm207mm115x110mmNA92x76mm20×11.5mm400Kgs

UNLOCK YOUR PERFECT CASTOR

Your Ultimate Selection Guide!

SELECT THE BEST CASTOR FOR YOU
images

ANY DOUBT

FAQ

Castors made from polyurethane material that are known for their exceptional durability and versatility are called polyurethane castor wheels. These wheels consist of a polyurethane tread that is mounted on a metal or plastic wheel core. Because PU castors can withstand heavy loads, resist wear and tear and provide effortless movement on various surfaces, they are popular for many applications.

There are many benefits to using PU castors. Some of these include:

  • These wheels can easily withstand heavy loads and provide excellent traction
  • Polyurethane castor wheels offer smooth and quiet operation and their non-marking properties also contribute to floor protection
  • They are highly durable and are resistant to abrasion and chemicals
  • PU castors are versatile mobility solutions that you can use in indoor and outdoor environments across many industries.

Yes! Polyurethane wheels are ideal for use in a wide range of applications in both indoor and outdoor environments. That is because they are durably made to withstand extreme environmental conditions like moisture and temperature changes. So, whether it's about navigating smooth indoor floors or rough outdoor surfaces, polyurethane castors offer unmatched performance, longevity and stability in all types of settings.

Featuring shore hardness 92-95 Shore A, PU castor wheels that are available in wheel sizes 2.5-8 Inches have a load capacity range of 80-400 Kgs. It means that these wheels are well-suited for withstanding heavy loads in industrial settings where heavy machinery or equipment demands movement from one place to another. Moreover, polyurethane has the resilience and ability to distribute weight effectively and ensure that the castors can handle or support heavy loads in demanding environments, and that too without compromising on performance or durability.

PU castor wheel’s exceptional durability, non-marking properties and chemical resistance sets it apart from other castor wheel types. Unlike rubber castor wheels, these wheels not only offer superior load-bearing capacity but also maintain their shape under heavy loads. Moreover, polyurethane castor wheels provide more noise-free and smoother operation than plastic wheels. Also, their versatility allows them to be used in diverse industries. That is why PU castors are the preferred choice for many businesses.

Yes! Polyurethane PU castor wheels are resistant to many chemicals and oils. The wheel material’s inherent properties, like its molecular structure and composition, are resistant to many chemicals and oils commonly found in industrial and commercial environments. This resistance is necessary to ensure the wheel’s integrity and performance, and it also makes these castor wheels ideal for applications where chemical exposure is quite common.

PU castor wheels are widely used in industries such as manufacturing, healthcare, retail and hospitality. While the wheels are used to support heavy equipment and machinery in manufacturing settings, they facilitate the smooth movement of carts and racks in the retail industry. If we talk about healthcare settings, PU castors are popular for their non-marking and hygienic properties. And, in retail and hospitality, these wheels are used to support and move trolleys and furniture.

Polyurethane castor wheels generally have a suitable temperature range of -55° to 80° Celsius. So, while these wheels can withstand moderate temperatures, exposure to high temperatures (above 80°C) for a long time can result in PU material degradation. It will ultimately reduce the wheel’s overall performance and durability. Therefore, if you need castor wheels to work in high temperature environments, we recommend you choose other castor wheel materials that have higher heat resistance.

The polyurethane castor wheel’s lifespan usually depends on the following three factors:

  • Load Capacity
  • Operating conditions
  • Frequency of use
Generally, if the wheels operate in normal conditions, they can last 2 to 10 years. However, you can extend the polyurethane castor wheel’s lifespan by maintaining the wheel regularly, using it properly and avoiding overloading and prolonged exposure to harsh environments.

You can only choose the right size of polyurethane wheels if you consider factors such as load capacity, maneuverability needs and floor type. Always select a wheel diameter that best suits your terrain and load weight. It will help you ensure the wheels navigate smoothly while also offering stability. In addition to this, do not forget to access the wheel width for optimal weight distribution and traction. You can also reach out to Muvall for guidelines and expert advice, as we are a leading polyurethane castor wheel manufacturer in India. We can help you select the precise sizing based on your specific application requirements.
